HUMAN-MACHINE INTERFACE

Information is collected in real time, and data is integrated to generate complete reports.

  • Easy Soldering Programming.
  • Support Point & Slide Soldering.
  • High Power Heater with Touch Panel Control System.
  • Support USB Transferring, Up/Download/Update Software.
  • RoHs Manufacture/No Pollution.
For more examples, please click here Practical application example

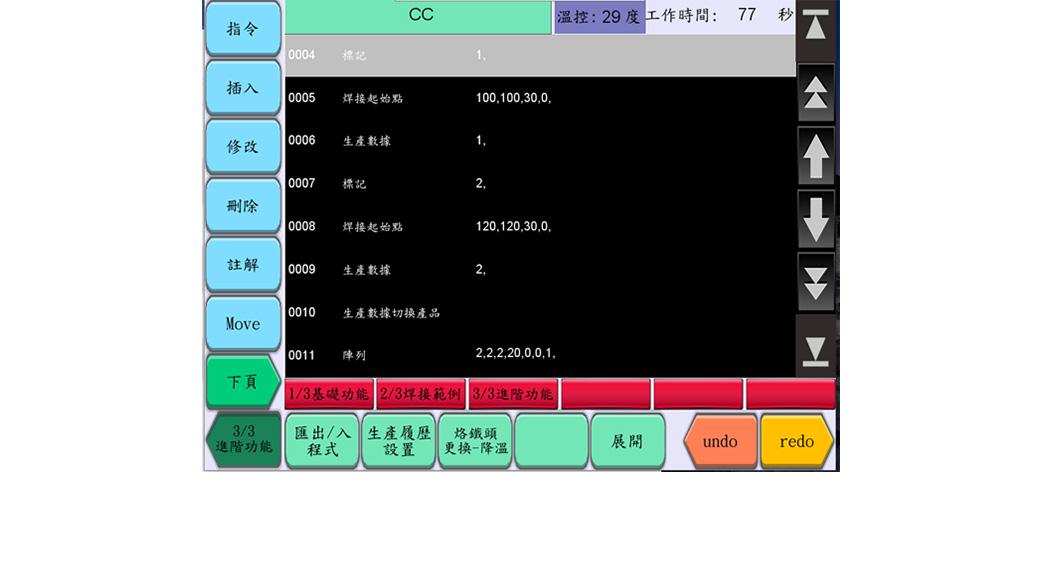

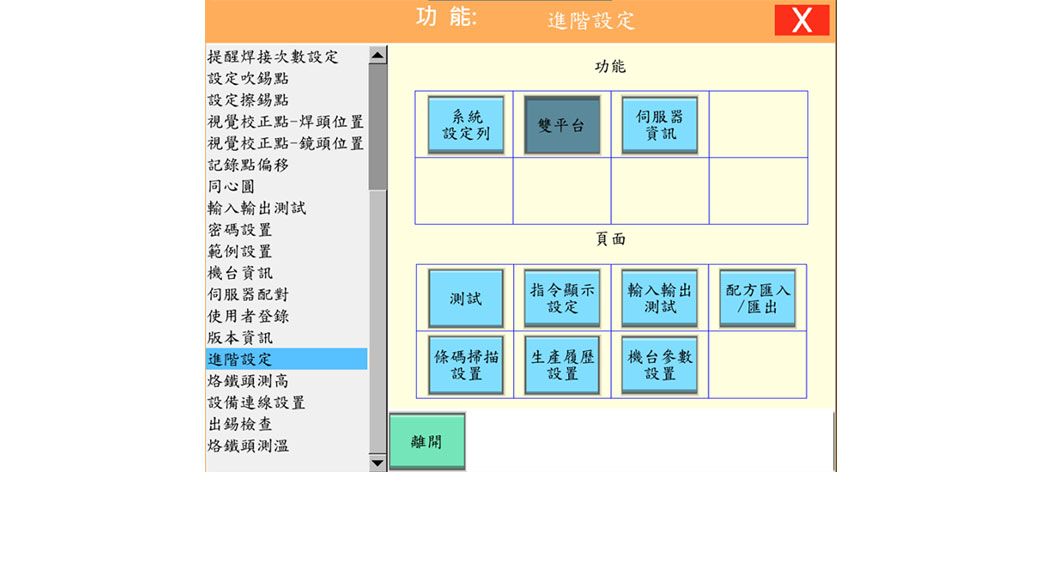

Function Screen

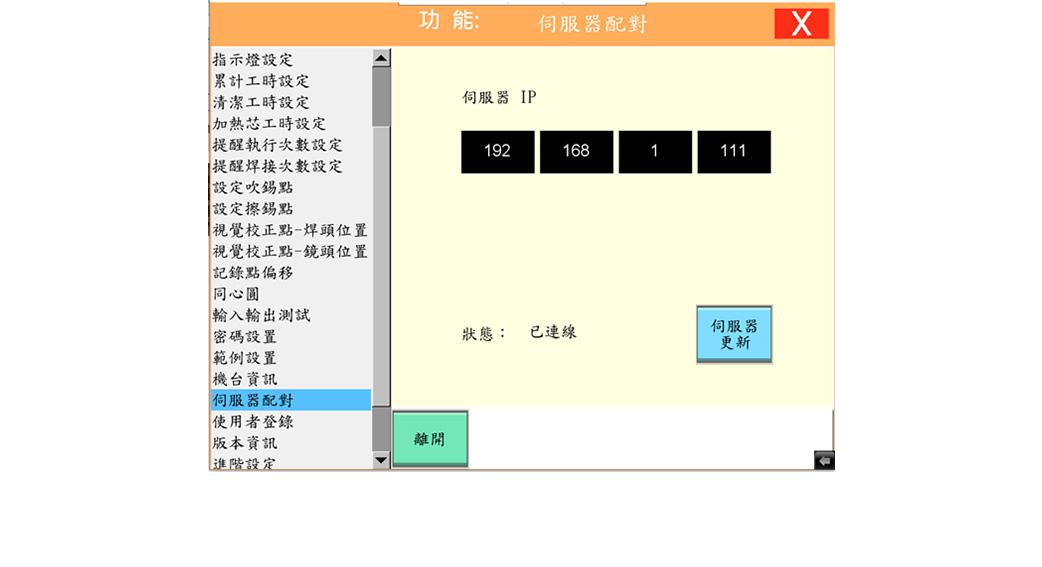

Servo IP pairing

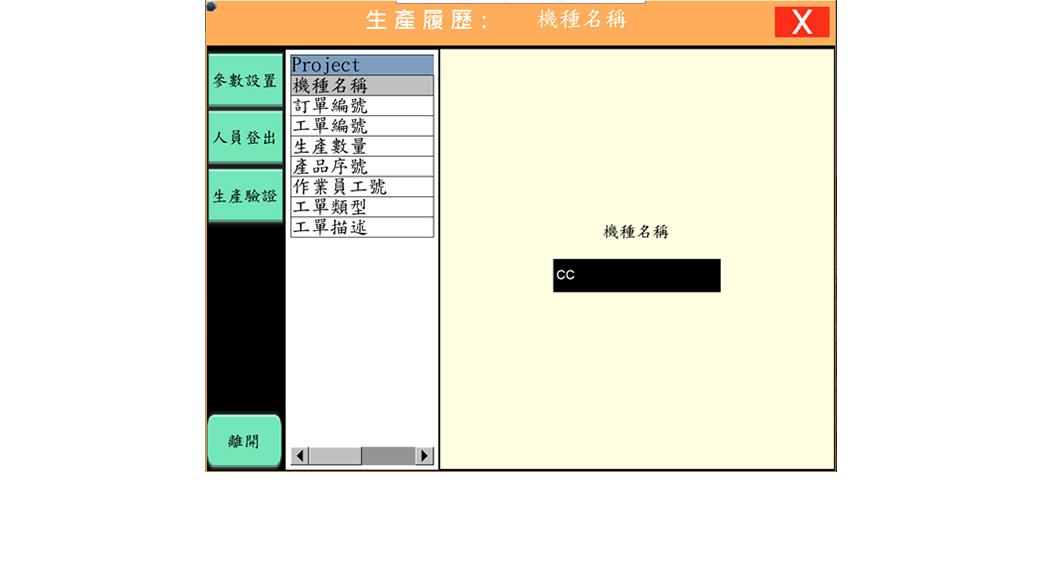

Model name

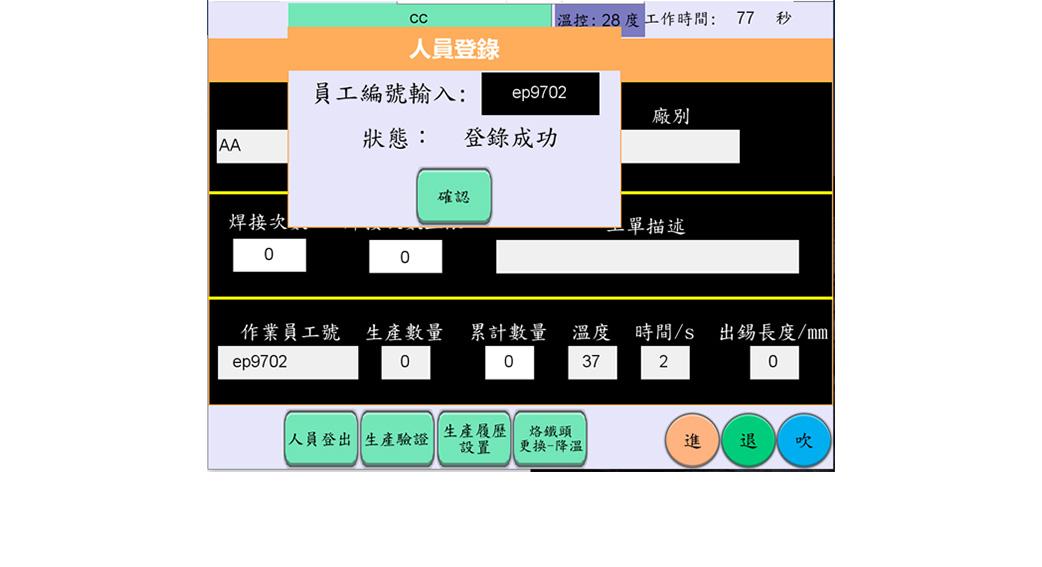

Personnel login

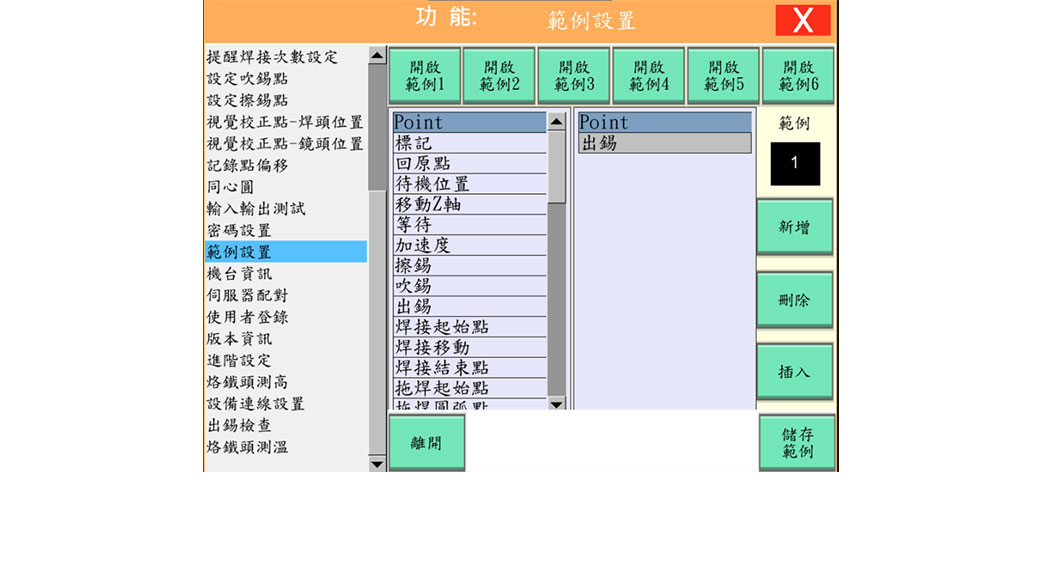

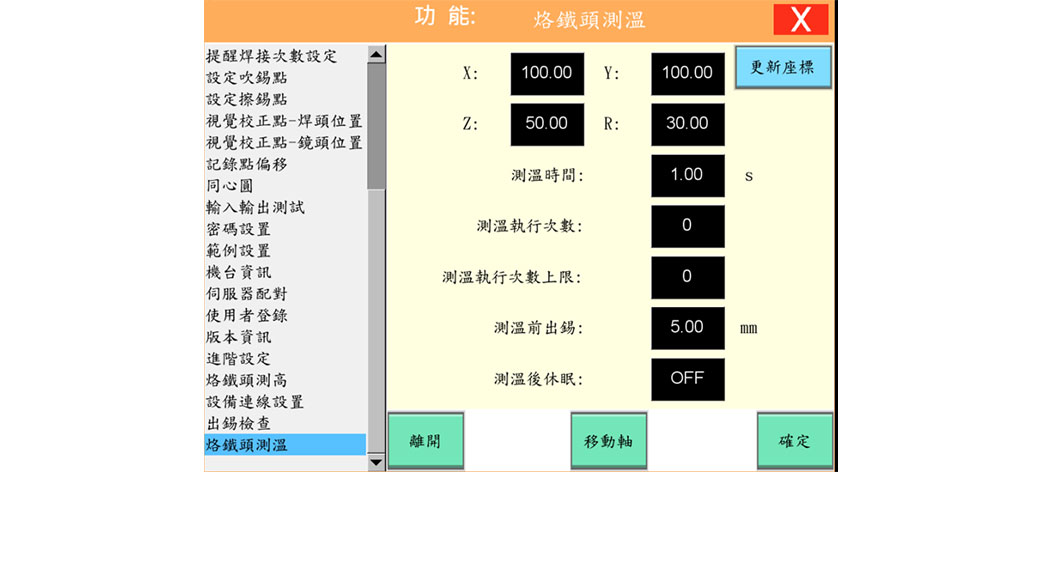

Soldering parameter setting

Application

Automatic Screwdriving Machine

Twin Stations Soldering Robot

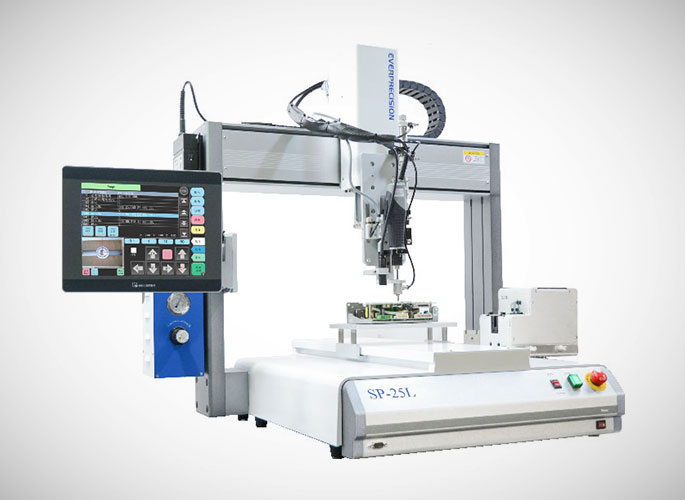

Gantry Soldering

Display 9.7"TFT
Brightness (cd/m2) 350
LCD viewing angle (T/B/L/R) 60/70/70/70
USB HostʻUSB 2.0 x 1
Working Temp. 10-40°C
Working Humidity 20-85% no condensation
Resolution 1024 x 768
Backlight type LED
Input power 24V
Ethernet 10/100 Base-T x 1
Max.Temperature Max. 500°C
Machine weight 0.85 kg
