PCB Conformal Coating Equipment – The First Choice for Protecting Electronic Circuits.
Equipped with CCD automatic vision alignment and image editing functions.
Image-based automatic conformal coating path generation for faster and easier programming.
Programmable conveyor width adjustment to enhance line changeover efficiency.
UV light system for real-time inspection of conformal coating spray status.
ual spray/dispense valve design for precise small-area coating, ensuring complete coverage.
Optional multi-axis rotation system supports multi-angle conformal coating, guaranteeing uniformity and full coverage.

For more examples, please click here Practical application example

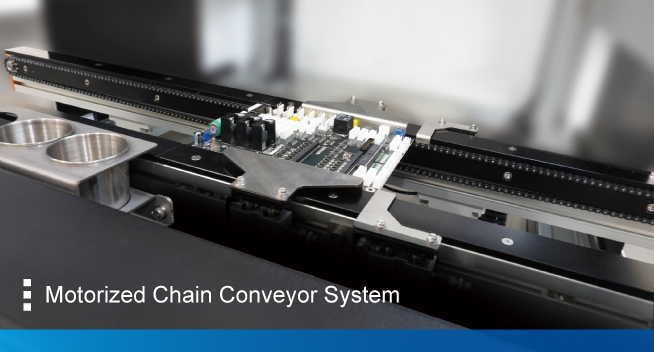

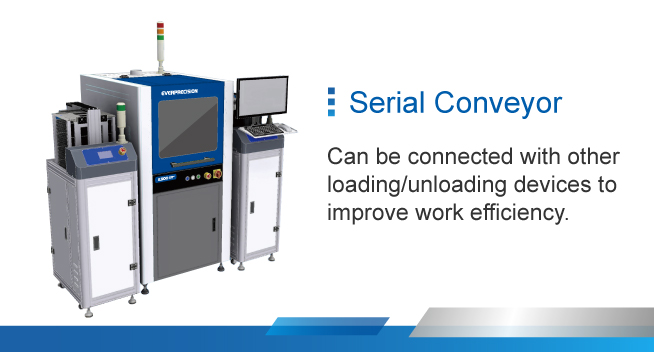

Motorized Chain Conveyor System

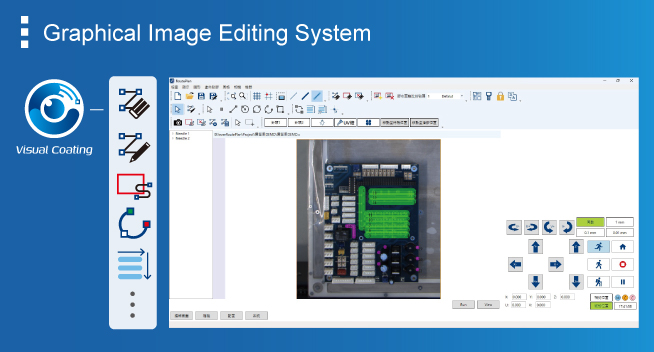

Graphical Image Editing System

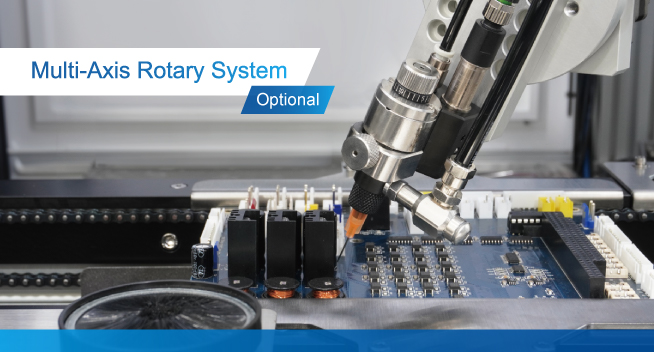

Multi-Axis Rotary Coating System (Optional)

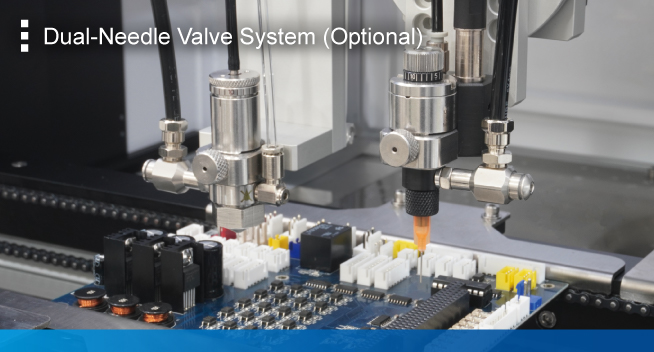

Dual-Needle Valve System (Optional)

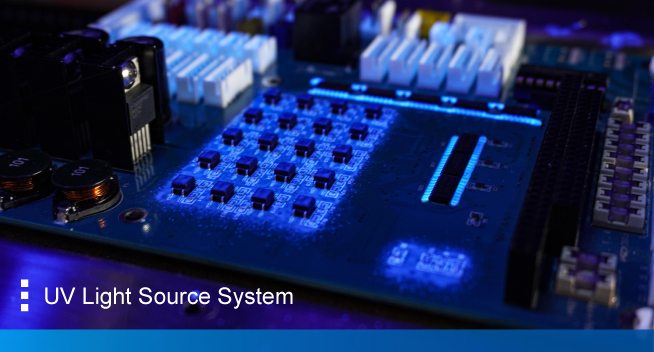

UV Light Source System

Various Conformal Coating Spray / Dispense Valve Systems

Spray valve

Conformal coating valve

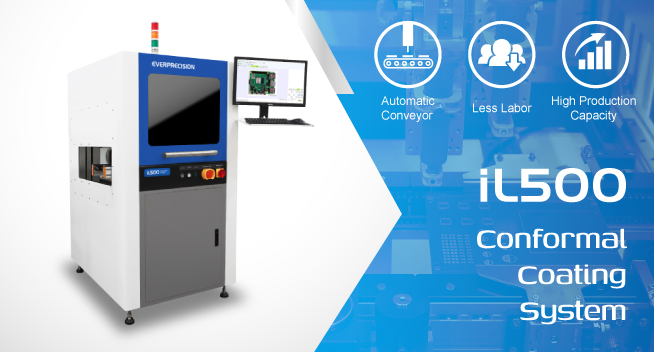

iL500 iL700

Moving Area X / Y / Z	430 / 400 / 100mm (Per Single Valve Calculation)
Vision System	12-Megapixel Color Camera
Repeatability	+/- 0.01 mm/ axis
I/O Signals	16 Inputs / 16 Outputs
Conveyor Type	Chain Drive
Adjustable Conveyor Width	50~500mm
Conveyor Height	890~940mm
Conveyor Speed	150mm/sec
Communication Interface	SMEMA
Rotary Coating System-Type	Needle 2 (Right Side)
Rotary Coating System-Rotation Axis(V)	±40°
Working Humidity	20~90% no condensation

Number of Spray / Dispense Valves	Multi-Axis Rotary Coating System / Dual-Valve System / Triple-Valve System
Moving Speed X&Y / Z	Max. 500 / 250 mm/sec
Data Storage Method	Industrial PC
Drive System/ Stepping Motor	XY Axis Servo Motors / Z Axis Micro Stepping Motor
Conveyor Width Adjustment	Motorized Width Adjustment / Programmable Control
PCB Edge Clearance	≥6mm
Maximum Load Capacity	5KG
Conveying Direction	From Left to Right
Power Supply	AC 200~240V
Rotary Coating System-Rotation Axis(R)	0~90°
Working Temp.	10~40 °C

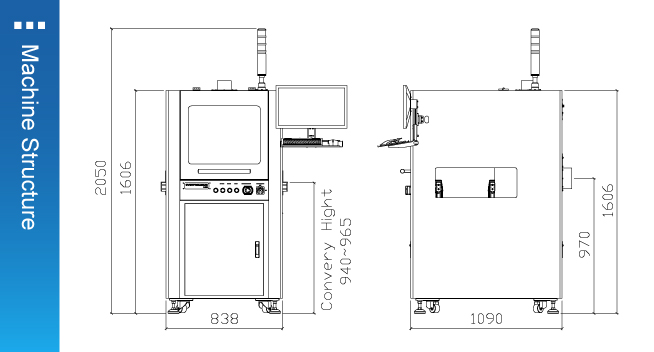

Dimensions WxDxH	83810901606mm (Excluding Additional Parts)

Moving Area X / Y / Z	570 / 510 / 100mm (Per Single Valve Calculation)
Vision System	12-Megapixel Color Camera
Repeatability	+/- 0.01 mm/ axis
I/O Signals	16 Inputs / 16 Outputs
Conveyor Type	Chain Drive
Adjustable Conveyor Width	50~600mm
Conveyor Height	890~940mm
Conveyor Speed	150mm/sec
Communication Interface	SMEMA
Working Temp.	10~40 °C
Dimensions WxDxH	127012001625mm ((Excluding Additional Parts)
