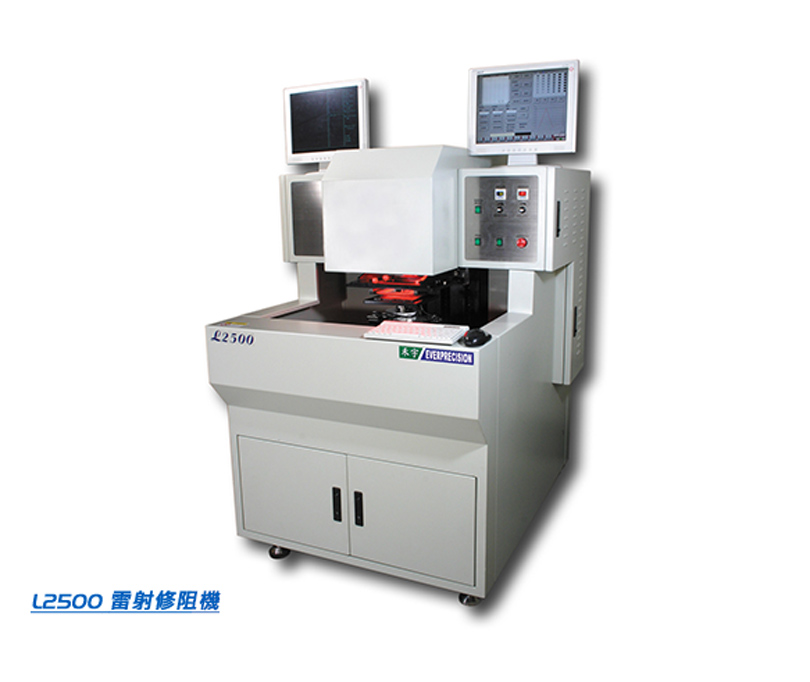

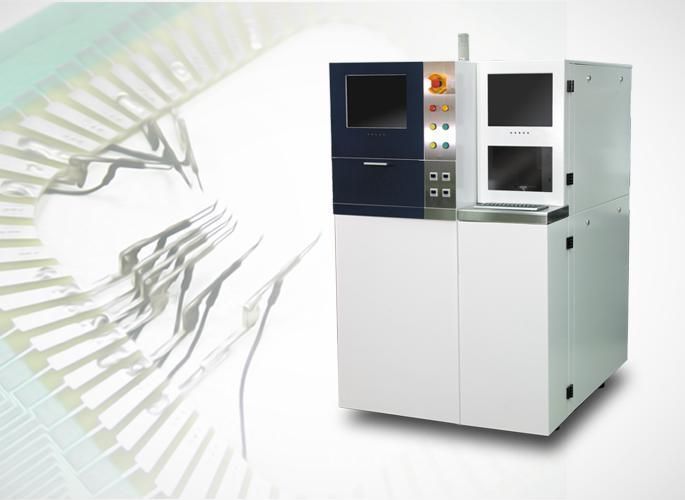

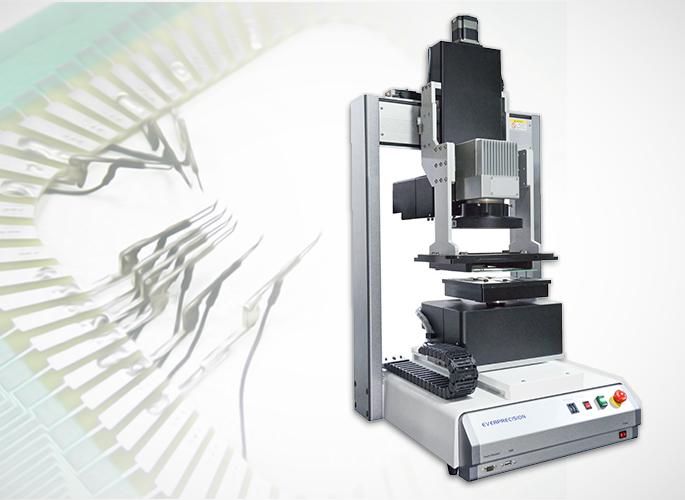

● L2500 雷射修阻機
具備完整光學辨識、精密量測及移動控制能力
- L2500 雷射調阻機適用於厚/薄膜電阻修整、調阻，加工範圍達80×80 mm，使用Fiber Laser為主要雷射光源，並搭配KEITHLEY電流電表，NI DMM 電表，修阻誤差精度小於1％。
欲觀看更多實例，請點此處
實際應用範例
軟體說明

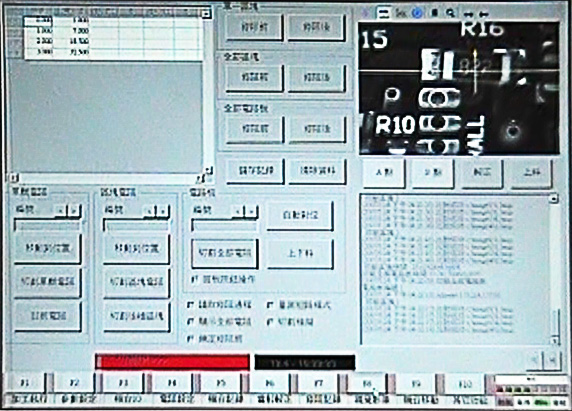

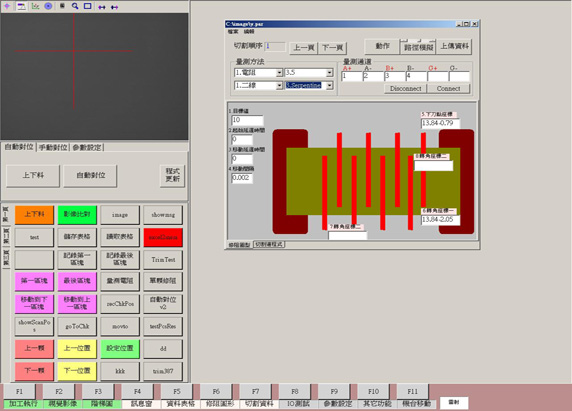

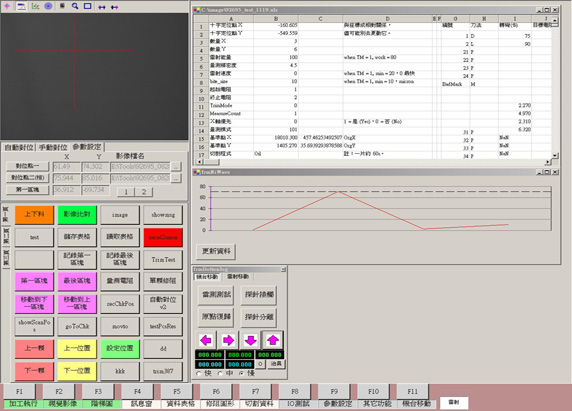

全中文介面軟體操作畫面，支援多種影像對位模式，微調修改丶掌握度高。
各式雷射修整刀法

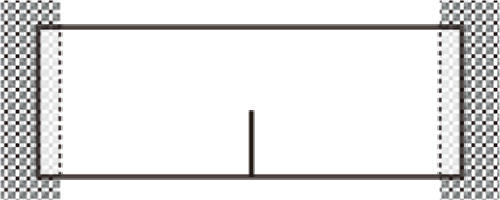

P-cut

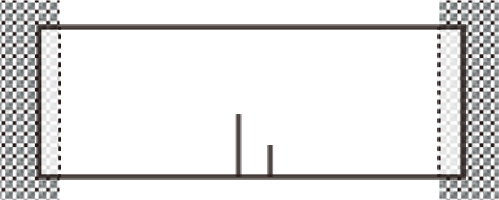

double-P-cut

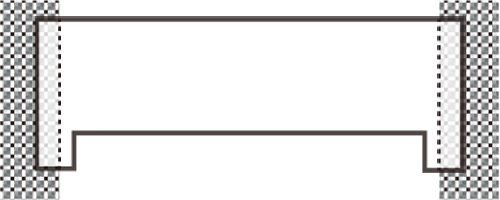

scan-cut
L-cut with shadow

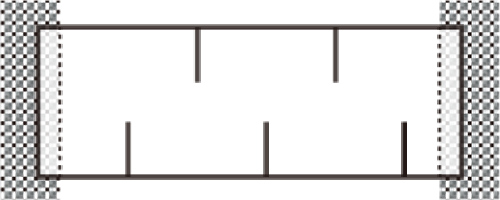

serpentine-cut
| Laser system | |
| Wavelength | 1064 ± 5nm |
| Beam Positioning | |
| Resolution | 2.4μm |
| Measurement system | |
| Channel | 128/single,32/4wires |
| Viewing | |
| Substrate Alignment | CCD with pattern recognition. |
| Type | Standard Industry Computer |
| Handler | |
| XYZ Resolution | ＜5μm |
| Dimensions | W880×D1040×H1450mm |
| Power | AC 220V single phase |
| Type | Fiber laser |
| Cooling Method | Air cooling |
| Field size | 80×80 mm |
| Spot size | ＜50μm |
| Type | Reed relay |
| Range | ＜0.001Ω to＞10Ω |
| Trim area | CCD camera with lens viewing |
| Computer Controller | |
| CPU Type | Pentium Base |
| X/Y/Z stage | 250×250×15mm |
| R stage | ±5° |
| Weight | 700 kg |
| Air Supply | 85~115 psi |
