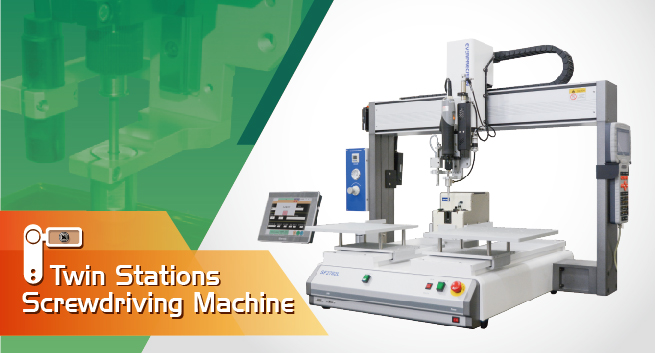

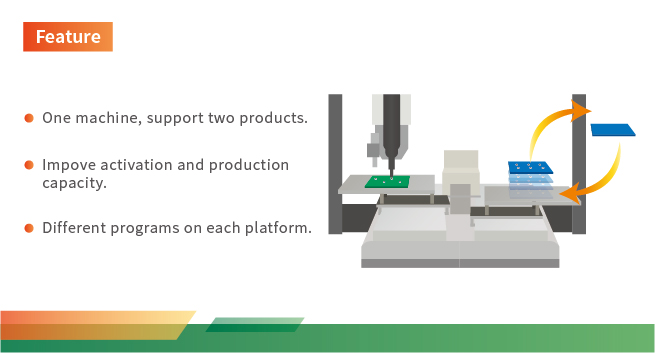

●TWIN STATIONS SCREWDRIVING MACHINE

Auto screwdriving robot with intelligent detect function for screw missing, floating screw and stripped screw.

  • Easy program editing with Human Machine Interface.
  • Optical ruler with coordinate position report function.
  • Electric screwdriver with torque detects and warning functions.
  • Intelligent detect function for screw missing, floating screw and stripped screw detection.
  • Servo Screwdriver is optional.

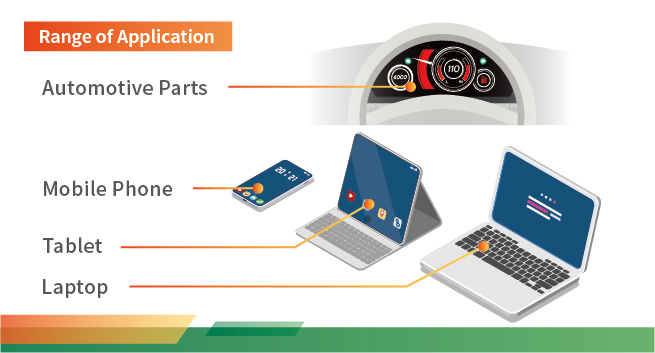

For more examples, please click here Practical application example

Operating procedures

Vision Alignment System

Parameter Setting

Program Editing

Automate Screw Fasten

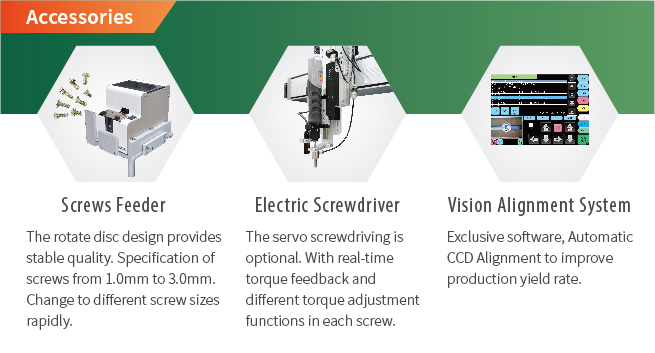

Accessory

Screw feeder

Electric screwdriver

Vision Alignment System

Moving Area (X/Y/Z) 700 / 500 / 100 mm
Moving Speed (XY/Z) XY/Z:1000 / 350 mm/sec
Data Memory capacity 9999 points/prog. 100 programs
Display mode Human-machine interface
Teach Mode Human Machine Interface
Input Power 100V~230V / 450W
Screw Length <18mm (maximum diameter)
Working Pressure 5~7 kg/cm² dry air source
Working Humidity 20-90% no condensation
Machine weight 97 kg
Working Area (X/Y) 500(Y1:255,Y2:255) / 500 mm
Repeatability +/- 0.01 mm/ Axis
Data storage method USB/SD card
Transmission system Precision slide guide (MIT)
Electric Screwdriver Brushless DC voltage
Nozzle Specification <9mm (maximum diameter)
Screw Feeder System disc type M1.0~M3.0mm (1.0/1.2/1.4/1.7/2.0/2.3/2.6/3.0)
Working Temp. 10-40°C
Machine size WxDxH 960 x 752 x 867.5 mm
