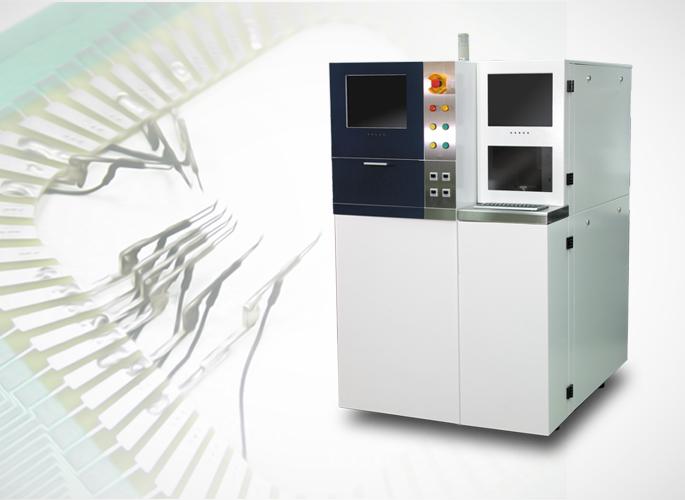

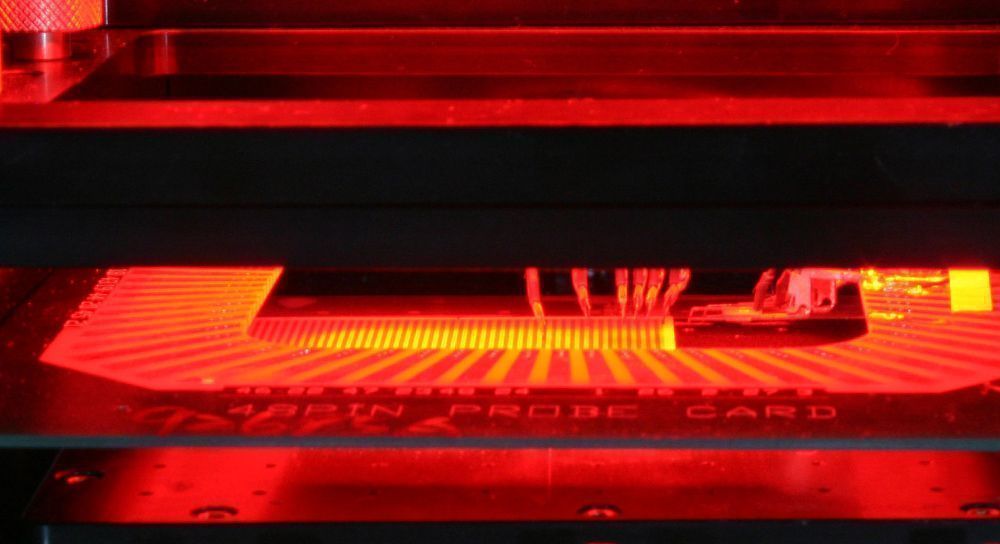

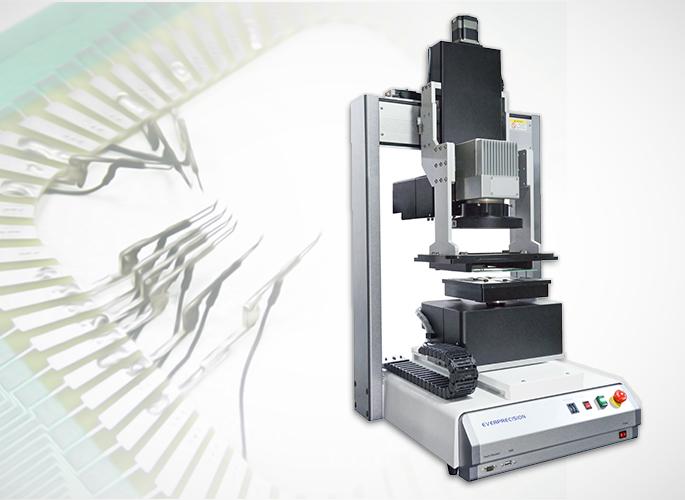

●L2500 雷射修阻机

具备完整光学辨识、精密量测及移动控制能力

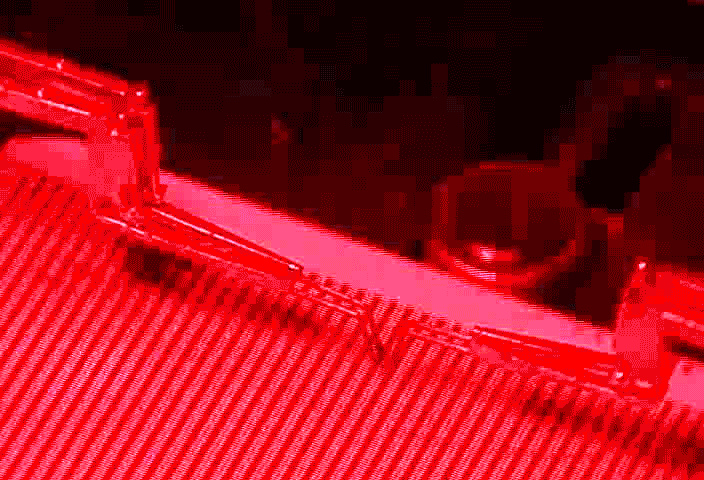

  • L2500 雷射調阻機適用於厚/薄膜電阻修整、調阻，加工範圍達80×80 mm，使用Fiber Laser為主要雷射光源，並搭配KEITHLEY電流電表，NI DMM 電表，修阻誤差精度小於1％。
欲观看更多实例，请点此处 实际应用范例

软件说明

全中文接口软件操作画面，支持多种影像对位模式，微调修改丶掌握度高。

各式雷射修整刀法

P-cut

double-P-cut

scan-cut

L-cut with shadow

serpentine-cut

L1289
Laser system
Wavelength 1064 ± 5nm
Beam Positioning
Resolution 2.4μm
Measurement system
Channel 128/single,32/4wires
Viewing
Substrate Alignment CCD with pattern recognition.
Type Standard Industry Computer
Handler
XYZ Resolution ＜5μm
Dimensions W880×D1040×H1450mm
Power AC 220V single phase
Type Fiber laser
Cooling Method Air cooling
Field size 80×80 mm
Spot size ＜50μm
Type Reed relay
Range ＜0.001Ω to＞10Ω
Trim area CCD camera with lens viewing
Computer Controller
CPU Type Pentium Base
X/Y/Z stage 250×250×15mm
R stage ±5°
Weight 700 kg
Air Supply 85~115 psi
