●PREMIUM SERIES TWIN HEADS SOLDERING ROBOT

Function & Features(Manufacturer)

  • Easy Soldering Programming.
  • Support Point & Slide Soldering.
  • High Power Heater with Touch Panel Control System.
  • Support USB Transferring, Up/Download/Update Software.
  • RoHs Manufacture/No Pollution.
For more examples, please click here Practical application example

Customer Service

Full Training Courses

Professional Fixtures Experience.

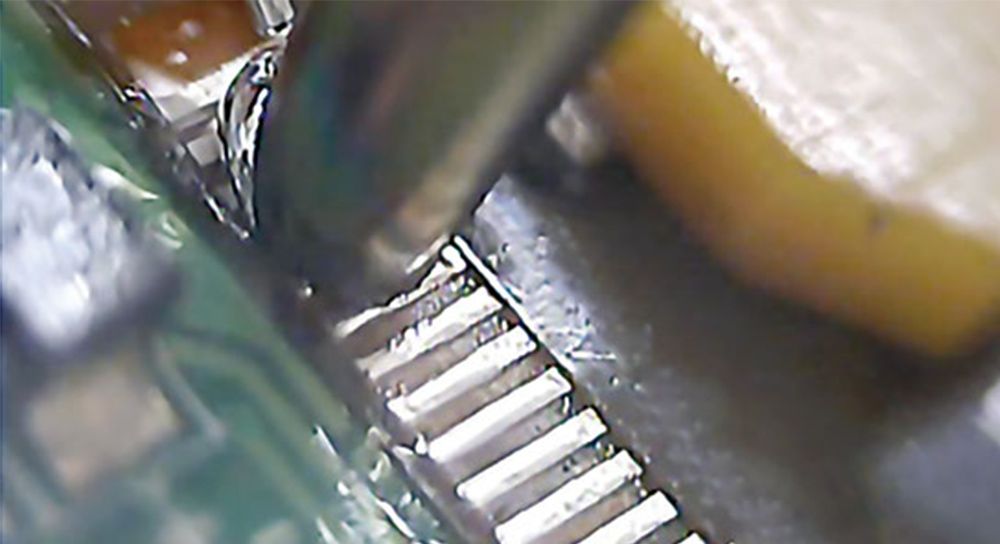

Graphic and Drawing Instructions-SMD

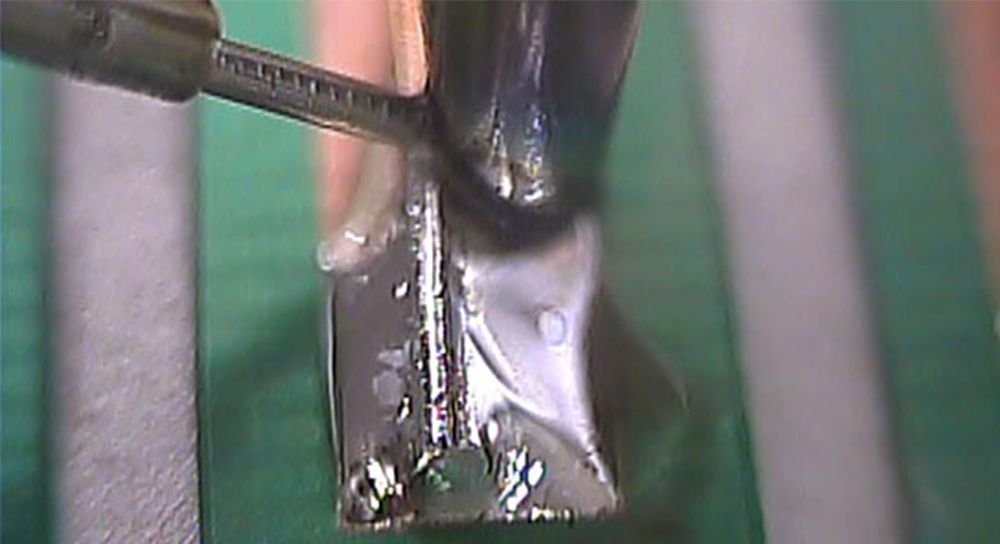

Graphic and Drawing Instructions-DIP

Accessory

Temp. Control System

Teach Pendant

Clean System

Solder Feeder

Wire Controller

Alarm Feeder System (Optional)

Nitrogen Generator (Optional)

Vision Alignment (Optional)

CCD Witness System(Optional)

Soldering Tip (Optional)

EP1400-SRII
Moving Area (X/Y/Z) 400/400/100 mm
Max. Speed XY/Z：400 / 320 mm/sec
Soldering Head Distance MIN. Distance 90mm / MAX. Distance 165mm
Program System CF Card / USB
Drive System/ Stepping Motor Micro Stepping Motor
Max.Temperature Max. 460°C
Solder Wire Diameters ø 0.4 ~ 1.2 mm
Clean System Air / Brush
Power Supply 100V~230V/450W
Working Humidity 20-85% no condensation
Weight 75 kg
Working Area(X/Y) 400 /300 mm
Repeatability +/- 0.01 mm/ Axis
Data Memory capacity 9999 points/prog. 100 programs
Display Teach Pendant LCD
Teaching Method Teach Pendant
Temp.Control Power 150 W (Optional:200W ; 280W )
Solder Feeder System Stepping Motor
Air Pressure 5~7 kg/cm²
Working Temp. 10-40°C
Dimensions WxDxH 791x730x860.5mm(Include exhaust pipe)
