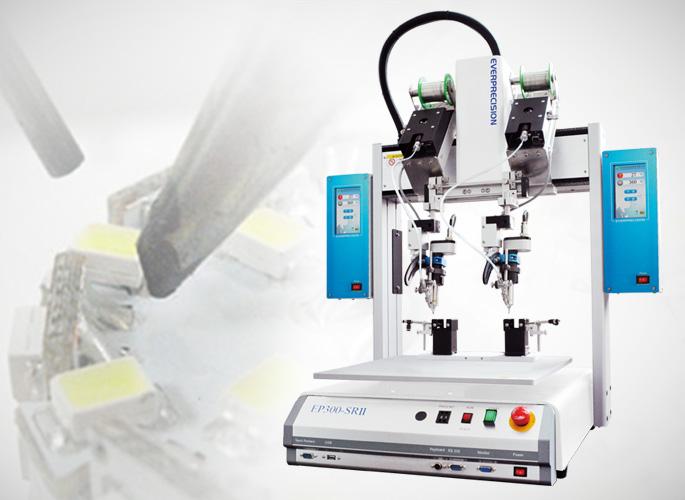

●PREMIUM SERIES SOLDERING ROBOT

Function & Features

  • Software/Hardware Developed In Taiwan, Provide Best Quality&Service.
  • High Rigidity Machine Base/Linear Guideway.
  • Change Producing Process, Quality Control Improve.
  • Support USB Transferring, UP/DOWNLOAD/Update Software.
  • RoHs Manufacture/No Pollution.
For more examples, please click here Practical application example

Customer Service

Full Training Courses

Professional Fixtures Experience.

Graphic and Drawing Instructions-SMD

Graphic and Drawing Instructions-DIP

Accessory

Temp. Control System

Teach Pendant

Clean System

Solder Feeder

Wire Controller

Alarm Feeder System (Optional)

Nitrogen Generator (Optional)

Vision Alignment (Optional)

CCD Witness System(Optional)

Soldering Tip (Optional)

Moving Area (X/Y/Z/R) 300 / 300 / 100 mm /±360°
Max. Speed XY/Z:600 / 320 mm/sec R:720°/sec
Data Memory capacity 9999 points/prog. 100 programs
Display Teach Pendant LCD
Teaching Method Teach Pendant
Temp.Control Power 150 W (Optional:200W ; 280W )
Solder Feeder System Stepping Motor
Air Pressure 5~7 kg/cm²
Working Temp. 10-40°C
Dimensions WxDxH 724 x 652 x 874 mm
Working Area(X/Y) 265 / 300mm
Repeatability +/- 0.01 mm/ Axis
Program System CF Card / USB
Drive System/ Stepping Motor Micro Stepping Motor
Max.Temperature Max. 460°C
Solder Wire Diameters ø 0.4 ~ 1.2 mm
Clean System Air
Power Supply 100V~230V/450W
Working Humidity 20-85% no condensation
Weight 57 kg
