●AUTOMATED SOLDERING KIT

In-Line Soldering Solution

  • Including Temp control system, Soldering Wire Feeder, Clean System and Soldering Head Module.
  • Quick installation and easy parameter set up for users.
  • 200W temp control system with high efficiency function. Applied to any soldering production works.

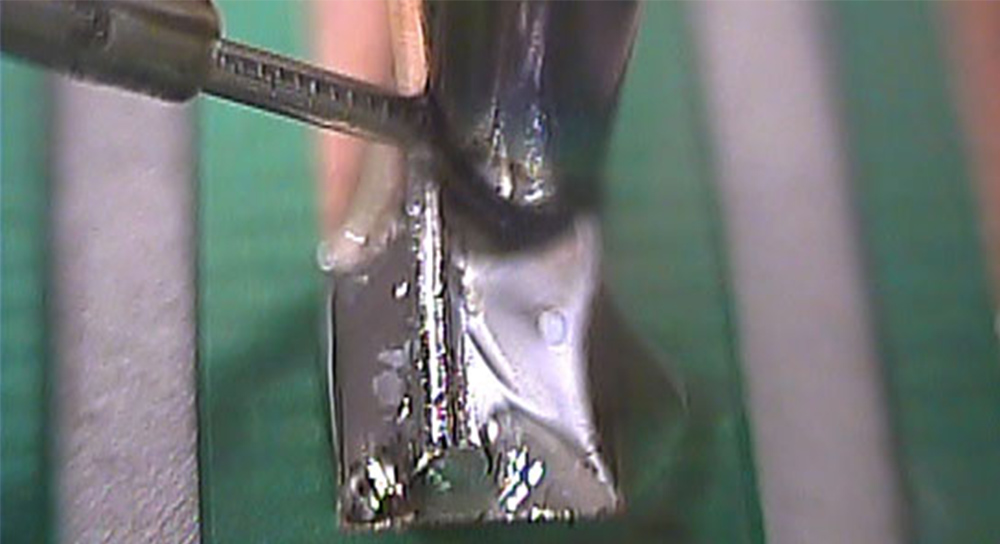

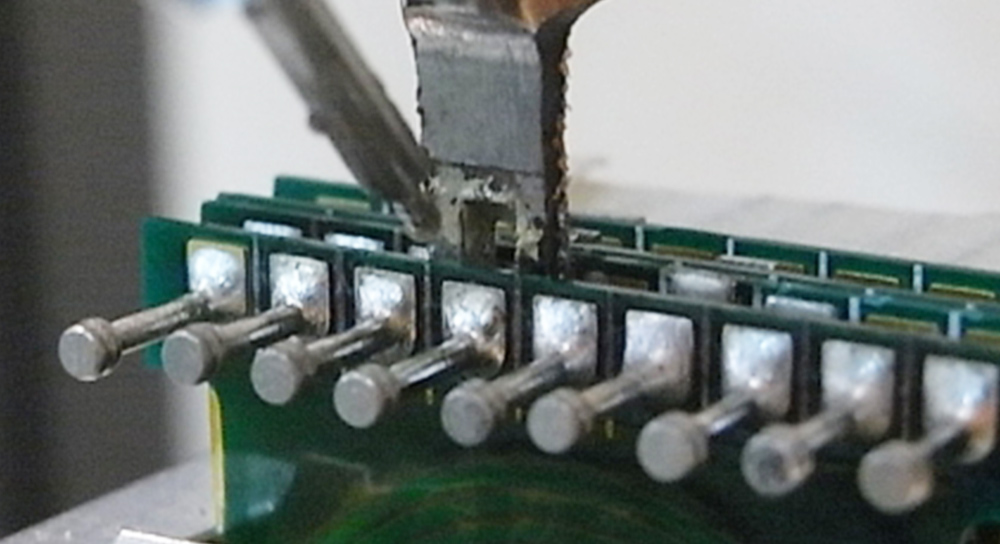

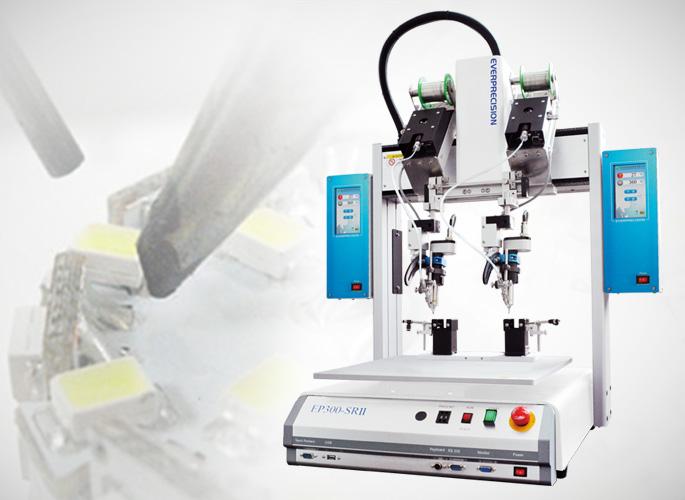

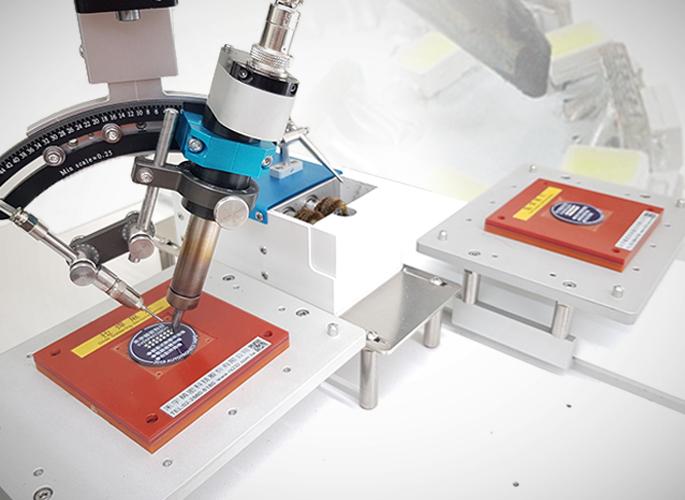

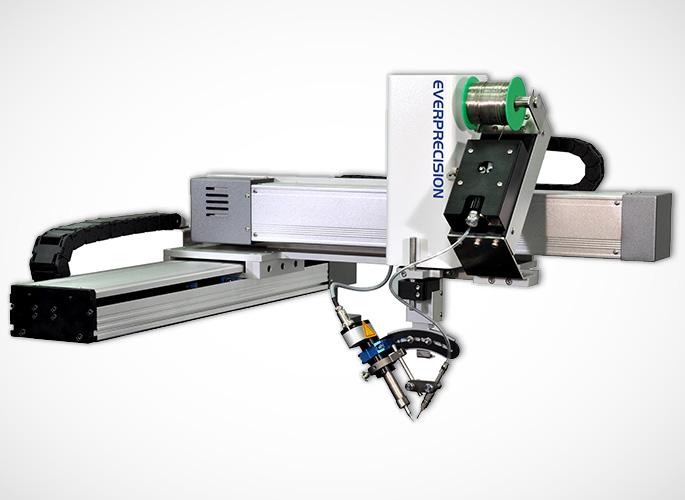

  • Applied to robotic arm, SCARA and desktop robot.

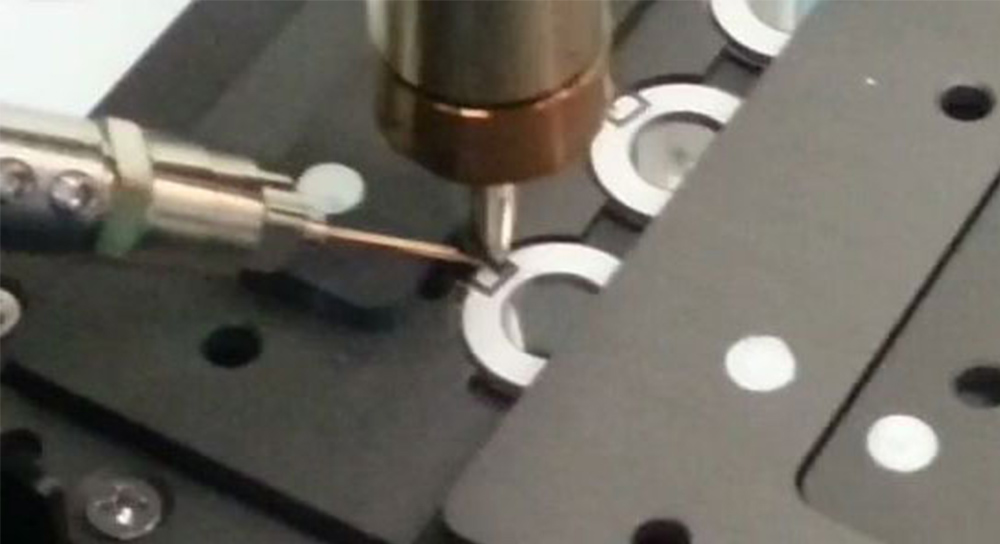

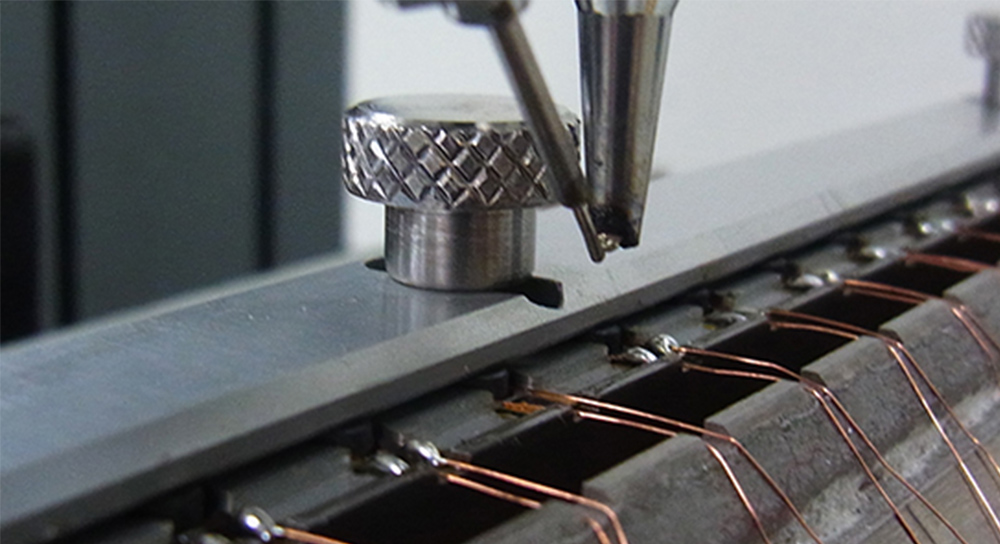

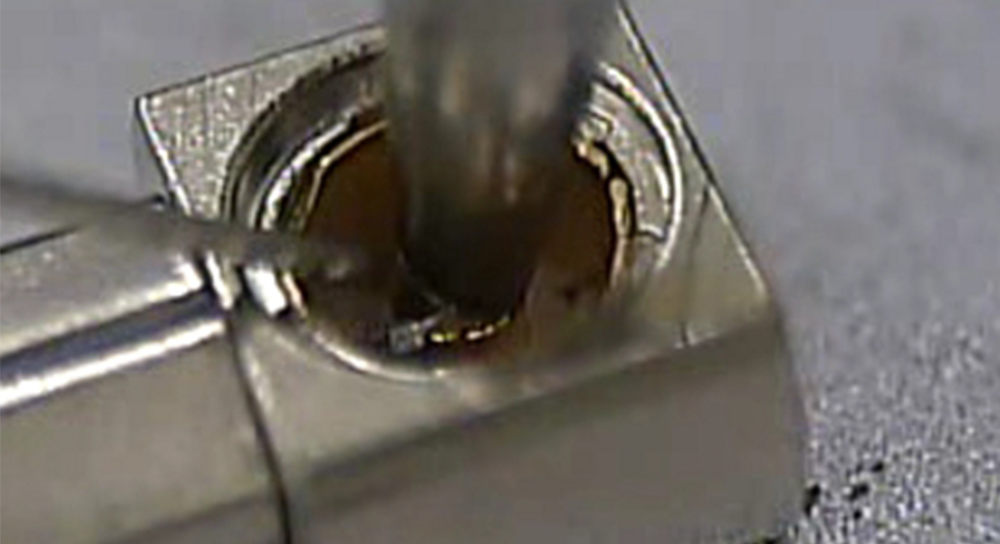

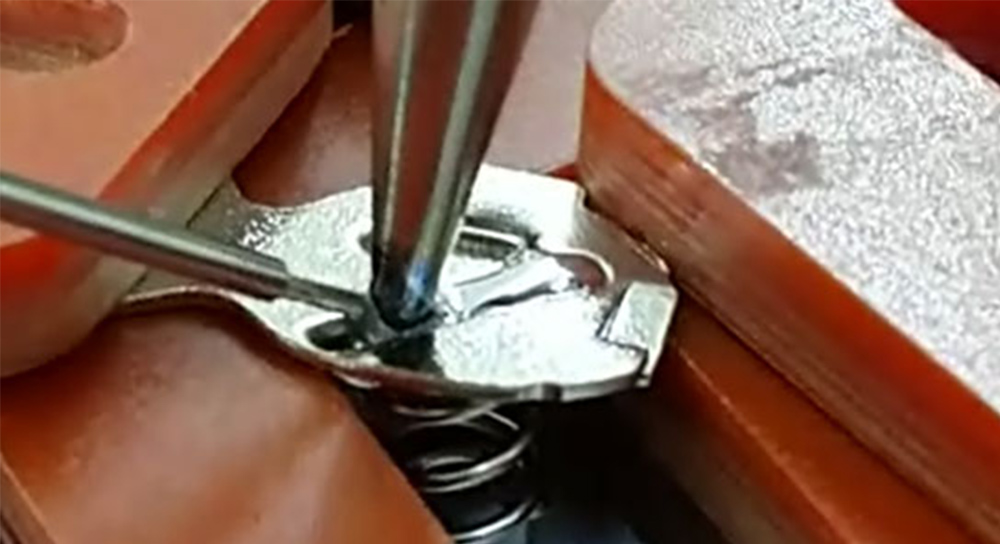

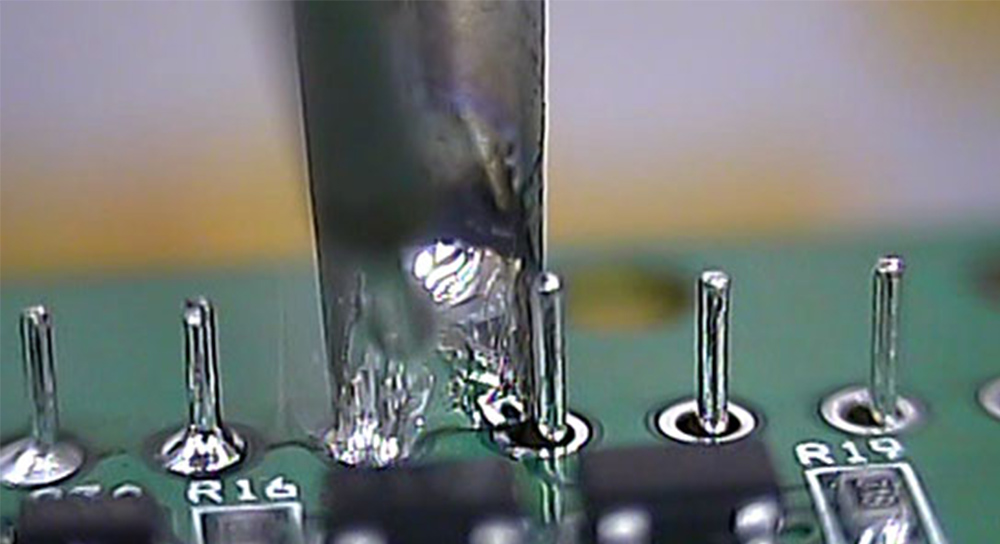

For more examples, please click here Practical application example

Software introduction

Support PLC.PC and Human Machine Interface connection. One station controls multiple temp control systems.

Robotic Arm

SCARA

Automated Soldering Kit Description

Touch Panel Temp Control System

Soldering Wire Feeder

Soldering Head Module

Clean System

Soldering Tip (Optional)

Heater Capacity 200W
I / O Signal 10 Input / 6 Output
Temp Control System Dimensions 273 x 92.5 x 153 mm
Clean System Dimensions 235 x 105 x 99.5 mm
Soldering Parameter Communication 256 units, I/O 16 units
Temp Control System Weight 3.5 Kg
Soldering Wire Feeder Weight 1.5 Kg
Communicate RS232 、 RS485 、 I/O、MODBUS、TCP/IP
Working Humidity 20-85% no condensation
Solder Wire Diameter 0.4~1.2mm
Air Pressure 5~7 Kg/cm2
Soldering Wire Feeder Dimensions 200 x 80 x 100 mm
Max Temperature 460℃
Power Supply AC100V~230V/400W
Clean System Weight 1.2 Kg
Soldering Head Module Weight 1.0 Kg
Working Temp. 10-40°C
